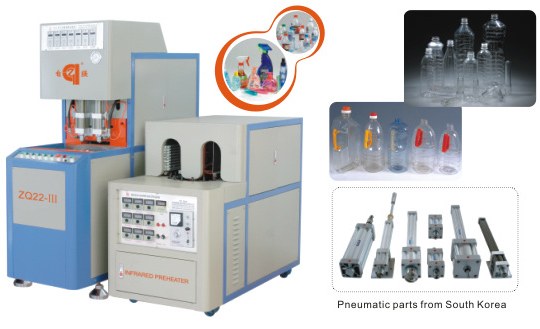

III semi-automatic stretch blow molding machine has been improved on the base of II, designed by CE standard. With microcomputer controlling system, it controls various technical parameter needed more accurately and more steadily. Only one person without special training operates it more easily and more safely. III is fit to blow carbonated beverage bottles, mineral water bottles, cosmetics bottles and hot-filling bottles.
Features:
1. Produce bottle from 0.1L to 2L (2 cavities)
2. Output capacity up to 900 for 0.6L using two-cavity blow mold
3. Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01second
4. Equipped with special designed air storage unit
5. Using Infrared preform heater
6. Independent Temperature Control for different heating lamp to get ideal preform heating results
7. Heating lamps are adjustable in directions to suit various preforms.
8. Operated only by one person without special training.
9. Simple installation & startup adjustment.
10. Waste rate of finished bottle is less than 0.2%.
ITEM UNIT TECH. DATA
III
Max.Volume of Product L 2(2-cavity)
Theoretical Output pcs/h 700--1200
Neck Size of Product (mm) 15-75
Useful Area of Mould (mm) 350*450
Mould Thickness (mm) 120-280
Mould Stroke (mm) 80-220
Clamping Force (KN) 120
Stretching Stroke (mm) 360
Working Pressure Mpa <=1.0
Blowing Air Pressure Mpa <=4.0
Power of Main Blower (KW) 0.2
Weight of Main Blower (Kg) 800
Measurement of Main Blower (mm) 1520*580*1780
Power of Preheater (KW) 10
Weight of Preheater (Kg) 450
Measurement of Preheater (mm) 1450*700*1150
PET material available
