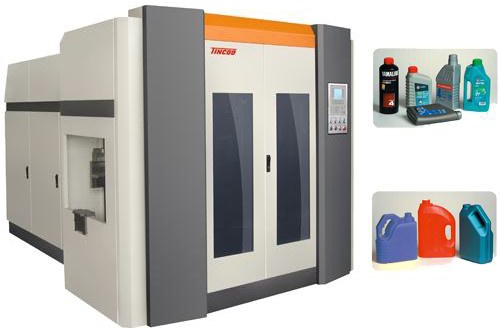

III semi-automatic stretch blow molding machine has been improved on the base of II, designed by CE standard. With microcomputer controlling system, it controls various technical parameter needed more accurately and more steadily. Only one person without special training operates it more easily and more safely. III is fit to blow carbonated beverage bottles, mineral water bottles, cosmetics bottles and hot-filling bottles.
Features:
1. Produce bottle from 0.1L to 2L (2 cavities)
2. Output capacity up to 900 for 0.6L using two-cavity blow mold
3. Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01second
4. Equipped with special designed air storage unit
5. Using Infrared preform heater
6. Independent Temperature Control for different heating lamp to get ideal preform heating results
7. Heating lamps are adjustable in directions to suit various preforms.
8. Operated only by one person without special training.
9. Simple installation & startup adjustment.
10. Waste rate of finished bottle is less than 0.2%.
ITEM UNIT TECH. DATA
III
Max.Volume of Product L 2(2-cavity)
Theoretical Output pcs/h 700--1200
Neck Size of Product mm 15-75
Useful Area of Mould mm 350*450
Mould Thickness mm 120-280
Mould Stroke mm 80-220
Clamping Force KN 120
Stretching Stroke mm 360
Working Pressure Mpa <=1.0
Blowing Air Pressure Mpa <=4.0
Power of Main Blower KW 0.2
Weight of Main Blower Kg 800
Measurement of Main Blower mm 1520*580*1780
Power of Preheater KW 10
Weight of Preheater Kg 450
Measurement of Preheater mm 1450*700*1150
PET material available
