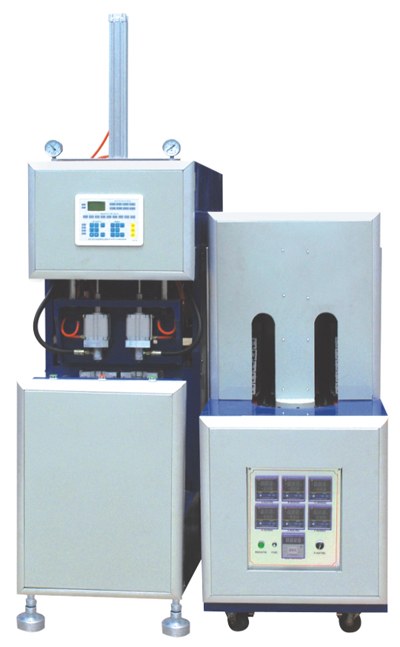

Blow Molding Machine
 |
| Type | main parts |
Item |
Unit |
specifications |
semi-automaticwide-mouth blow molding machine |
molding |
container volume | ml | 6000 |
| theroretical output(*) | pcs | 800 | ||
| clamping stroke | mm | 220 | ||
| max thickness of mold | mm | 260 | ||
| max container height | mm | 410 | ||
| max container diameter | mm | 180 | ||
| size | m | 2.0*0.68*1.72 | ||
Heating |
electrical system | voltage/freqiemcy | 380v/50-60Hz | |
| heating power | kw | 12 | ||
| carriage unit | psc | 72 | ||
| size | m | 1.75*0.65*1.48 | ||
Air compressor |
air consuming | L/min | 1.2 | |
| working pressure | mpa | 3 | ||
| power | kw | 15 | ||
| size | m | 2.15*0.94*1.36 | ||
Germany BOSCH、 Swiss PARKE Valve Germany FESTO、japan SMC air cylinder Fridenly interface PLC computer controller |
||||
Depending on the coneainer shape、size and perform weight、thickness |
||||
