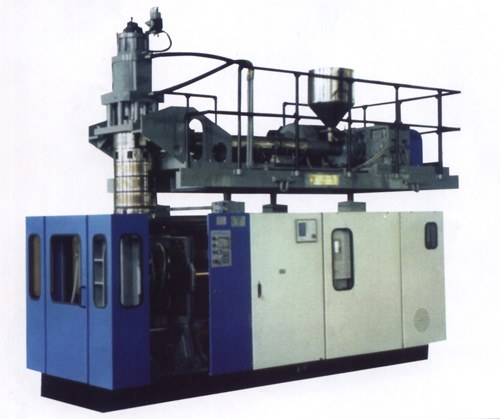

Blow Molding Machine
 |
|
Series Automatic Plastics Blow Moulding Machine
|
|
|
Material |
PE/PP/ABS |
|
Max container capacity |
50 L |
|
Number of die |
set |
|
dry cycle time |
720 Pc/hr |
|
Machine dimension(LxWxH) |
4.6x1.6x4.2 m |
|
Total weight |
12 ton |
|
Clamping unit |
220 KN |
| Platen Force | 400-1000 mm |
|
Platen opening stroke |
700x750 Mm |
|
Max mould size(WxH) |
700x750 Mm |
|
Mould thickness |
420-550 Mm |
|
Max drive |
30 KW |
|
Total power |
85 KW |
|
Air pressure |
0.8 Mpa |
|
Air consumption |
0.8 m3/min |
|
Average energy consumption |
35 KW/hr |
|
Screw diameter |
Φ90 Mm |
|
Screw L/D ration |
23:1 L/D |
|
Plasticising capacity |
90 Kg/hr |
|
Number of heating zone |
6 zone |
|
Extruder driving power |
37 KW |
|
Number of heating zone |
4 KW |
|
Power of die heating |
18.8 KW |
|
Max die-pin diameter |
Φ320 mm |
