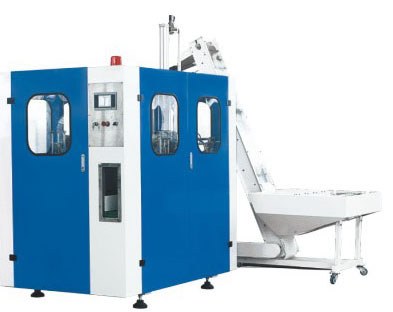

Blow Molding Machine
 |
CM-A2 Full automatic blow molding machine is suitable for producing PET/PE and PP plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics.
|
Main part: |
||
|
Pneumatic part |
Valve |
FESTO/SMC |
|
Cylinder |
||
|
Electric part |
PLC |
LG |
|
Operating system |
LG |
|
|
Relay |
OMRON |
|
|
Infrared thermometer |
America Raytek |
|
|
Note |
All of the electrical components adopts CE、UL、CCC approved international advanced high-tech product. |
|
|
Main parameter: |
||
|
Productivity |
Depend on bottle design |
1800-2000pcs/h |
|
Product type |
Body diameter |
≤100mm |
|
Height |
≤310mm |
|
|
Neck diameter |
18-38mm |
|
|
Mold |
Cavity |
2cavity |
|
Mold thick |
240mm |
|
|
Mold |
260*240*370mm |
|
|
Main machine power |
Electrical source power |
380V/220V 50/60Hz |
|
Rated Power |
25KW |
|
|
Really use power |
6-10KW |
|
|
Air source |
LP air compressor |
1.0 m3/min 10kg |
|
HP air compressor |
1.4 m3/min 30kg |
|
|
Air dryer |
1.0 m3/min 30kg |
|
|
Cooling water |
Cooling water |
10L/min |
|
Size |
L*W*H |
1910*1858*1935mm |
|
Weight |
2000Kg |
|
|
Auxiliary equipment（pre-form unscrambler） |
L*W*H |
2000*950*2480mm |
|
Weight |
250Kg |
|
|
Resin available |
|
PET |
