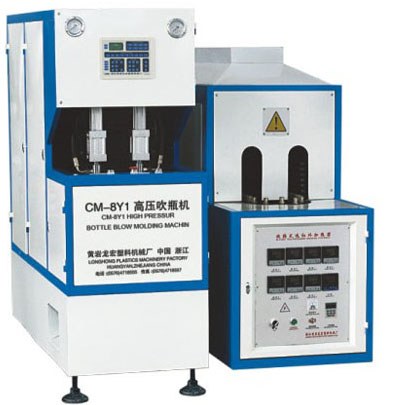

Blow Molding Machine
 |

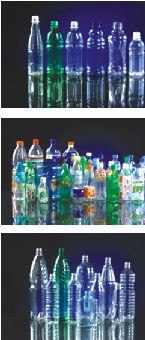

semiautomatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 10-2000ml. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc
|
Main parameter: |
|||
|
Container |
Product material |
|
PET |
|
Volume |
L |
0.1-2 |
|
|
Theoretical output |
Pcs/h |
600-900 |
|
|
Preform length |
Mm |
15-350 |
|
|
Preform inner diameter |
Mm |
φ5-38 |
|
|
Mould |
Max.mould plate Diameter(L x W) |
Mm |
350*380 |
|
Max.mould thickness |
Mm |
180 |
|
|
Clamping force |
KN |
45 |
|
|
Mould opening stroke |
Mm |
16 |
|
|
Machine size and weight |
Main machine (L x W x H) |
Cm |
160*60*161 |
|
Main machine weight |
Kg |
500 |
|
|
Heater (L x W x H) |
Cm |
187*63*145 |
|
|
Heater weight |
Kg |
250 |
|
|
Power |
KW |
17.5 |
|
