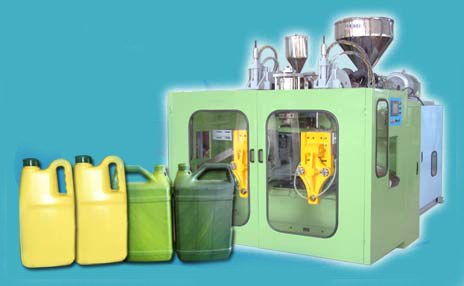

Blow Molding Machine
 |
Parameters |
|
|---|---|
| Machine Model | |
| LHB75D | |
| Max.Product Capacity | |
| 8 L | |
| Output(Cycle Time) | |
| 240/300 Pc/Hr | |
| Machine Dimension | |
| 3.8*2.3*2.7 m | |
| Machine Weight | |
| 5.2 T | |
| Power |
|
| Total Power | |
| 62.5 Kw | |
| Average power consumption | |
| 38 Kw | |
| Air Pressure | |
| 0.6 bar | |
| Air Consumption | |
| 0.5/1.0 M3/min | |
| Cooling Water Pressure | |
| 4/8 bar | |
Extruding System |
|
| Screw Diameter | |
| 75 mm | |
| Screw L/D ratio | |
| 24 | |
| Extruder driving power | |
| 30 Kw | |
| No.of Heaters | |
| 3 | |
| Screw Heating Power | |
| 12.5 Kw | |
| HDPE Plasticising Capapcity | |
| 90 Kg/H | |
Single Die Head |
|
| Max．Die-pin Diameter | |
| 150 mm | |
| Number Of Heating，Zone | |
| 3 | |
| Heating Power Of Die Head | |
| 6 Kw | |
Double Die Head |
|
| Center Distance Of Die Head | |
| 160 mm | |
| Max．Die-Pin Diameter | |
| 80 mm | |
| Number Of Heating Zone | |
| 3 | |
| Heating Power Of Die Head | |
| 8 Kw | |
Tri-die Head |
|
| Center Distance Of Die Head | |
| 110 mm | |
| Max．Die-pin Diameter | |
| 65 mm | |
| Number Of Heating Zone | |
| 4 Kw | |
| Heating Power Of Die Head | |
| 7 Kw | |
Tetra-die Head |
|
| Center Distance Of Die Head | |
| 90 mm | |
| Max．Die-pin Diameter | |
| 40 mm | |
| Number Of Heating Zone | |
| 5 | |
| Heating Power Of Die Head | |
| 7.2 Kw | |
Clamping System |
|
| Clamping Force | |
| 75 KN | |
| Platen Size | |
| 390*460 mm | |
| Platen Opening Stroke | |
| 150-500 mm | |
| Max．Mould Size | |
| 400*470 mm | |
| Mould Thickness | |
| 155-300 mm | |
