Blow Molding Machine
 |
Setting:
Clamping------------Double station+Hight-precision guide+large arm cylinder axle
Extrusion system--Hard gear surface reducer+Japan inverter
Die system----------Central-incoming extrusion die with special steel
Hydraulic system--Japan hydraulic valve seal and proportional control
Control system----Japan PLC+Imported HMI+PLC automatic
CE standard
Hydraulic parts
|
Name |
Brand |
|
Oil pump |
YUKEN |
|
Valve |
YUKEN |
Electronic parts
|
Name |
Brand |
|
Micro computer control system |
Mitsubishi PLC/SIMENS |
|
|
Inductive screen: DELTA |
|
Tem’ control part |
LG |
|
Replay |
OMRON (JAPAN) |
|
Contacting |
South Korean LG |
|
Air switch |
South Korean LG |
|
Electric motor |
SIMENS |
|
Transducer |
DELTA (TAIWAN) |
Pneumatic system
|
Name |
Brand |
|
Electromagnetism valve |
AIRTAC(TAIWAN) |
FOB ningbo price
|
kind |
Type |
Power |
PRICE（USD） |
Unit |
||
|
machine |
ZQD-5Ltr Double station extrusion blow molding machine with one die head |
Installation power 43KW |
66911 |
1 set |
||
|
To blow 5Ltr product , can reach 220-300 bottles per hour. |
||||||
|

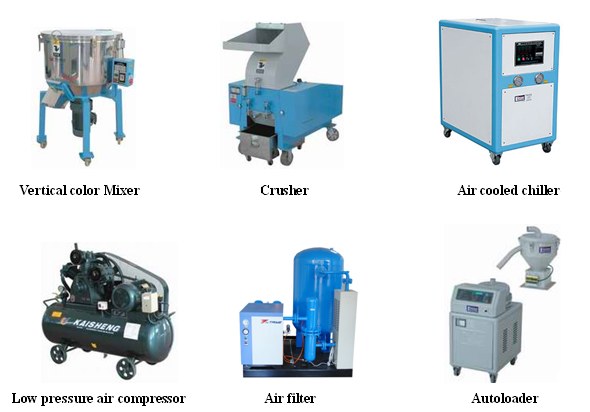

Assistant machine |
Low pressure air compressor 2m3*10kg |
15KW |
3632 |
|
||
|
Air receiving tank 0.3 m3/30 kg& Air filter& Air dryer |
2KW |
3345 |
|
|||
|
Autoloader 600 GN |
1.1KW |
1147 |
|
|||
|
Vertical color Mixer 100 kg |
3 KW |
2100 |
|
|||
|
Crusher 400 kg |
5.5 KW |
2580 |
|
|||
|
Air cooled chillerXC-05AC1 |
5KW |
3250 |
|
|||
|
Total price |
|
82965 |
|
|||
Others：
Price: FOB NINGBO Port;
Payment terms: 30% deposit T/T and balance before shipment;
Delivery time: 45 days after deposit;
After-sale service: 1 year guarantee and life-long technical support;
Installation：We can send skilled technicians for machine installation with the flight and accommodation charges on your side.
Specifications:
|
Specification |
|
ZQD-5L |
|
Material |
|
PE、PP… |
|
Max.container capacity |
L |
5 |
|
Number of die |
set |
1、2、3、4 |
|
Output |
pcs/hr |
240 |
|
Machine Dimension |
m |
3.4×2.2×2.6 |
|
Total weight |
ton |
6.5 |
|
Accumulator head |
|
ZQD-5L |
|
Number of die heating |
zone |
3 |
|
Power of die heating |
KW |
5.8 |
|
Max die-pin diameter |
mm |
80 |
|
Center distance of twin-die |
mm |
160 |
|
Center distance of tri-die |
mm |
110 |
|
Center distance of four-die |
mm |
85 |
|
Clamping Unit |
|
ZQD-5L |
|
Clamping force |
KN |
70 |
|
platen opening stroke |
mm |
145-510 |
|
platen size |
mm |
320×390 |
|
Max mould size |
mm |
350×370 |
|
Mould thickness |
mm |
155-300 |
|
Extruder Unit |
|
ZQD-5L |
|
Screw diameter |
mm |
70 |
|
Screw L/D ratio |
L/D |
24:1 |
|
Extruding Volume |
Kg/hr |
100-120 |
|
Number of heating zone |
zone |
3 |
|
Extruder heating power |
KW |
6-8.2 |
|
Extruder driving power |
KW |
22-37 |
