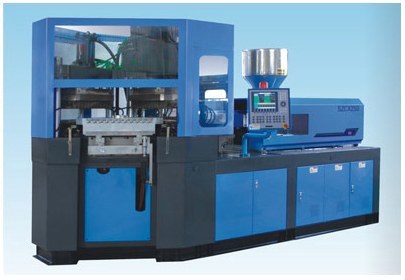

Blow Molding Machine
 |
Product: Plastic bottle
Output: According to bottle volume
Electrical Requirement:
380V / 50Hz / 3 Phrase 5 Wires
TECHNICAL PARAMETERS:
|
No |
Item |
Unit |
SZCX250/60 |
|
1 |
Dia.of screw |
mm |
52 |
|
2 |
Max theoretical injection capacity |
cm3 |
280 |
|
3 |
Total power for charging barrel |
kw |
10.5 |
|
4 |
Plasticising capacity approx |
g/s |
58 |
|
5 |
Clamping force of injection mold |
kn |
600 |
|
6 |
Opening stoke of injection mold |
mm |
120 |
|
7 |
Clamping force of blow mold |
kn |
80 |
|
8 |
Opening stoke of blow mold |
mm |
120 |
|
9 |
Dry cycle time |
s |
3.2 |
|
10 |
Max swing radius |
mm |
570 |
|
11 |
Liftion height of rotary table |
mm |
60 |
|
12 |
Max plane size of mold(L*W) |
mm |
680*400 |
|
13 |
Min mold thickness |
mm |
280 |
|
14 |
Motor power |
kw |
30 |
|
15 |
Mold heating power |
kw |
6 |
|
16 |
Pressure of hydraulic system |
Mpa |
14 |
|
17 |
Max working pressure of compressed air |
Mpa |
1 |
|
18 |
Discharge rate of compressed air |
m3/min |
0.8 |
|
19 |
Consumption of cooling water |
m3/h |
6 |
|
20 |
Dimension of machine(L*W*H) |
mm |
4000*1490*2400 |
|
21 |
Machine weight |
T |
7 |
|
22 |
Range of formability product |
ml |
3-500 |
|
23 |
Height of formability product |
mm |
≤160 |
|
24 |
Dia.of formability product |
mm |
≤80 |
Scope of Supply
• SZCX250/60 injection blow molding machine
- 1 set Main Machine
- 1 set conveyor and counter
- 3 sets mold temperature controller
- 1 set mould(injection mould and blow mould)
• Spare Parts and Tools
• Documentation
Technical Specification
Ⅰ. Main parts of machine
Oil pump PARKER
Hydraulic valves VICKERS
Oil motor INTERMOT
Pneumatic valves FESTO
Electromotor BIJIE
low-voltage apparatus SCHNEIDER
Oil pipe tie-in EATON
Screw and barrel JINYOU
LCD computer TECHMATION
Displacement transducers GEFRAN
Switch OMRON
Mould temperature controller SHINI
13.Material used for mould：
① Cavity, Mandril and Screw：9Cr18 HRC55-58
② Mould Plate：45# HRC25-28
II. Spare Parts and Tools of machine
1. mold temperature oil pipe
2*90°*650 4 units
1*90°*650 4units
2*90°*850 1 unit
Double straight *650 4 units
2:. bottom plate 1 unit
3. plastic machine iron cushion - 10 units
4. adjust pole with screw - 3 units
5. water nozzle - 5 units
6. oil nozzle - 3 units
7. internal hexangular spanner - 1 suit
8. switch - 1 unit
9. communion contact implement - LC1--DO9M ,7 C ,1 unit
10. heating circle - Φ110*75 ,1 unit
11. thermocouple - K 5 m, 1 unit
12. take off preform implement -1 unit
13. core rode adjust spanner - 1 unit
14. BNC connector plugs -16A233 ,3 units
15. hydrau-pressure equipment -1 suit
III. Spare parts of mould
|
Mold serial no |
|
Model |
|
|
Name |
Quantity |
Standard parts |
Remark |
|
Core rod |
1or 2 |
|
|
|
Oil pipe |
4/2 |
One straight one bend /double straight |
|
|
Socket head screw 1 |
50 |
M5*12 |
|
|
Socket head screw 2 |
50 |
M6*30 |
|
|
Socket head screw 3 |
50 |
M8*30 |
|
|
Feeler gauge |
1 |
|
|
|
Oil connection |
5 |
ZG1/4,M14*1.5 |
Spare parts |
|
Water connction |
5 |
ZG1/4,D10 |
Spare parts |
|
Nozzle |
5 |
KLTY-08 |
Spare parts |
|
Nozzle plate |
2 |
KLTY-03 |
Spare parts |
|
Socket head screw4 |
2 |
M8*75 |
Spare parts |
|
Socket head screw5 |
4 |
M10*35 |
Spare parts |
|
Socket head screw7 |
3 |
M8*25 |
Spare parts |
|
O sealing ring 2 |
40 |
D=18,d=2.4 |
Spare parts |
|
Screw 1 |
40 |
M4*114 |
Spare parts |
|
|
|
Unite Price |
Subtotal |
|
-Main Machine(with conveyor and counter ) |
1set 3sets |
$104000 $5850 |
$135850 |
