Blow Molding Machine
 |

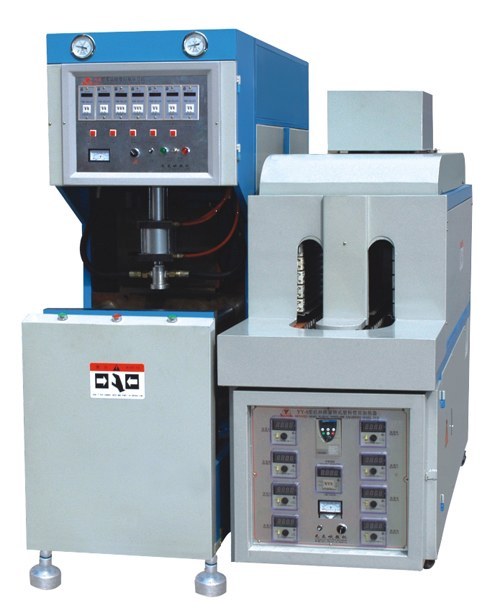

The photo of the blow molding machine and a infrared heating oven
|
description |
quantity |
Unit price(USD) |
Amount(USD) |
1. |
Blow molding machine（A-8-5000B） |
1 |
7260 |
7260 |
Heating oven |
1 |
|||
2 |
High pressure compressor1.2/30bar |
1 |
3050 |
3050 |
3 |
1cold dryer and 2 filters |
1set |
990 |
990 |
4 |
5000ml mould (2 cavity) |
1 |
1300 |
1300 |
|
Total price |
|
12600 |
12600 |
Main specification of the blow molding machine
Container volume (ml) |
6000 |
Cavity |
2 |
Theoretical output（phc） |
700 |
Clamping stroke（mm） |
220 |
Max thickness of mold (mm) |
250 |
Max container height (mm) |
350 |
Max container diameter (mm) |
180 |
Size（m） |
2000*800*1860 |
Weight (KGS) |
1100 |
Electeical system(V) |
220V/50-60HZ |
Use power (kw) |
8 |
Total power（kw） |
32 |
Electrical system (voltage/frequency) |
380V/50-60HZ |
Carriage unit (pcs) |
48 |
Size (m) |
2.2*0.61*1.47 |
Weight (kg) |
250 |
The photo of the high-pressure compressor
Air consuming(L/minm³) |
1.2 |
Working pressure(bar) |
30 |
Power(kw) |
15 |
|
|
The photo of the filter
Main specification
Air consuming(L/min) |
1.0 |
Working pressure(kg) |
3.0 |
Power(kw) |
15 |
Size(m) |
0.6*0.28 |
Weight(kg) |
35 |
The photo of the cold dryer
Main specification
Air consuming(L/min) |
1.0 |
Working pressure(kg) |
3.0 |
Power(kw) |
15 |
Size(m) |
0.95*0.65*1.1 |
Weight(kg) |
60 |
Mold
