Name

Unit Price (USD)

Qty.

Total Price (USD)

1.

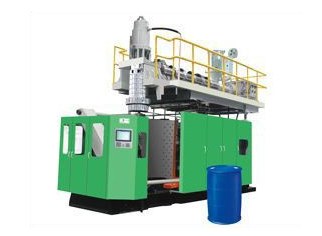

Single Station Single Die-head Automatic Extrusion-blow Moulding Machine

260000

1

260000

2.

208L blow mould (1-cavity)

40000

1

40000

3.

Water chiller 5AC

2600

1

2600

4.

2.0/0.8 Air compressor

2600

1

2600

Total price(USD)

305000

260L

Max container capacity(L/cavity)

260

Theoretical output(pcs/hr)

300

Screw L/D ratio(L/D)

28-32

Extruding capacity(Kg/hr)

350-450

Clamping force(KN)

900

Mould opening stroke(MM)

800-1800

Platen size(w*h)(MM)

1200*1600

Max. mould size(w*h) (MM)

1200*1750

Die heating power(KW)

15

Extruder heating power(KW)

16-24

Screw motor power(KW)

90-132

Oil pump motor power(KW)

55

Air consumption(m3/MIN)

2

Water consumption (L/MIN)

280

Machine dimension(L*W*H)(M)

7.8*2.9*5.4

Machine weight(TON)

38
