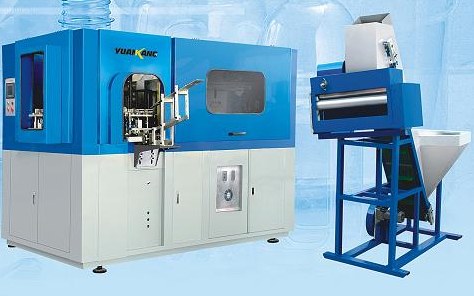

Blow Molding Machine
 |
Working valve：ARK(South Korean)
Cylinder：AirTAC(Taiwang)
PLC :SIEMENS(French)
Computer Board：WEINVIEW（Taiwang）
Relay：OMRON(Japan)
|
No. |
Description |
Quantity |
Unit Price |
Amount（USD） |
|
1. |
Full-automatic Blow molding Machine |
1 |
22000 |
22000 |
|
2. |
Auxiliary equipment: |
|||
|
High-pressure air compressor1.2/30bar |
1 |
3000 |
3000 |
|
|
Low-pressure air compressor1.6/12.5bar |
1 |
2290 |
2290 |
|
| Cold dryer and two filters1.0/30 |
1unit |
990 |
990 |
|
| Cold dryer and two filters2.0/30 |
1unit |
1100 |
1100 |
|
|
Air tank0.6/30 |
1 |
990 |
990 |
|
|
Chiller 3 HP |
1 |
1500 |
1500 |
|
|
750ml blow mould |
1 |
600 |
600 |
|
|
1000ml blow mould |
1 |
800 |
800 |
|
container volume (ml) |
1500 |
|
Electrical system (V) |
380v/50-60Hz |
|
cavities |
2 |
|
Max diameter(mm) |
93 |
|
clamping stroke (mm) |
120 |
|
mold thickness (mm) |
160 |
|
stretching stroke(mm) |
450 |
|
theoretical output(pcs) |
2400 |
|
Weight (KGS) |
2000 |
|
The total measure area |
2720*3400mm |
|
Main machine size |
2720*1440*2060mm |
|
Loading machine size |
1700*1100*2400mm |
|
Power(kw) |
50 |
|
Use power(kw) |
20 |
The photo of the high-pressure compressor
|
Air consuming(L/min) |
1.2 |
|
Working pressure(bar) |
30 |
|
Power(kw) |
15 |
The photo of the low-pressure compressor
|
Air consuming(L/min) |
1.6 |
|
Working pressure(bar) |
12.5 |
|
Power(kw) |
15 |
The photo of the filter
Main specification
Air consuming(L/min) |
2.0 |
|
Working pressure(kg) |
3.0 |
|
Power(kw) |
15 |
|
Size(m) |
0.6*0.28 |
|
Weight(kg) |
35 |
The photo of the cold dryer
Main specification
|
Air consuming(L/min) |
1.0 |
|
Working pressure(kg) |
3.0 |
|
Power(kw) |
15 |
|
Size(m) |
0.95*0.65*1.1 |
|
Weight(kg) |
60 |
The photo of the air tank
|
Air consuming(L/min) |
0.6 |
|
Working pressure(kg) |
30 |
*Notice:the photos of the auxiliary equipment is only for reference
